SELMI MOULD LOADER - ONESHOT ACCESSORY
Voltage
400 V/3 Phase/50 Hz
Power
4-5 Kw
Hourly production rate
900-1000 mould
Dimensions
(LxWxH)
2200x1200x1700 mm
DETAILED PRODUCT INFORMATION
1. OVERVIEW
Brand: Selmi – Italy
Application Segment: Automatic chocolate lines with TUTTUNO 4 / 9 / ICE / ICE Plus.
Equipment Introduction:

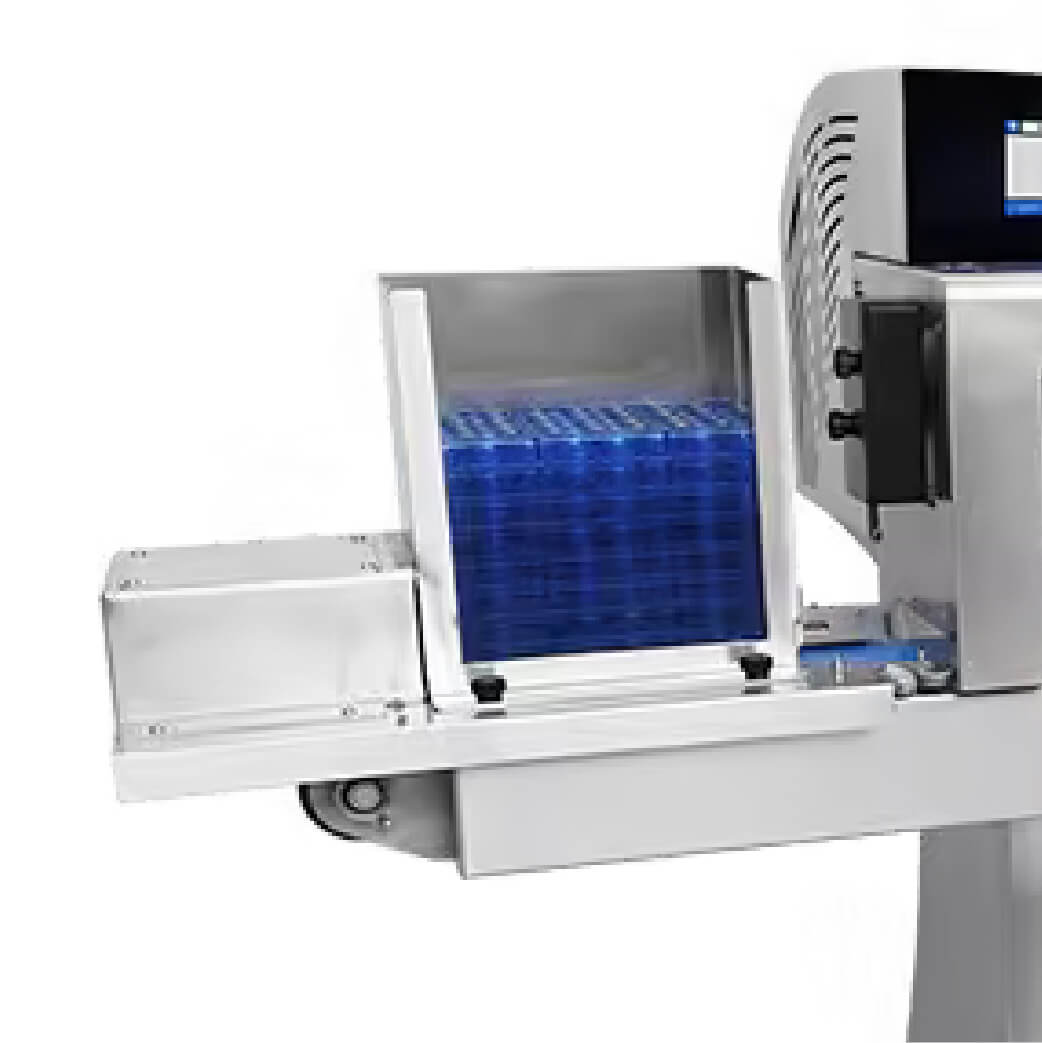

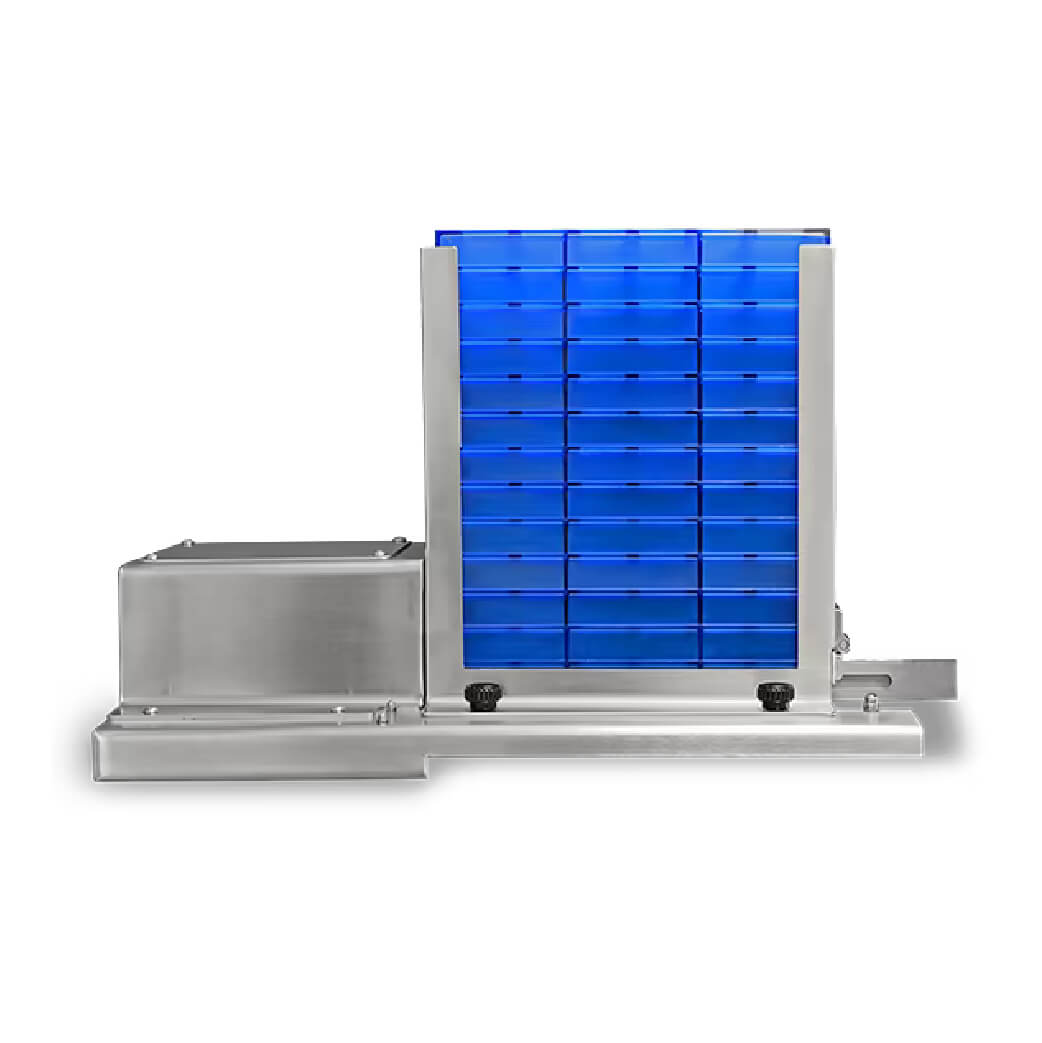

- MOULD LOADER automatically feeds polycarbonate moulds to the OneShot depositing zone.
- With precise electromechanical assemblies and photoelectric sensors, it ensures continuous, interruption-free cycles, optimizing speed and product consistency.
- Directly connects to VIBRA (vibration), SPIDER (vertical cooling), or TUNNEL 400/600 (horizontal cooling) for a fully automated line.
2. KEY FEATURES
- Continuous automatic feeding: Eliminates manual loading; maintains stable depositing speed.
- Intelligent positioning & sensing: Accurate mould alignment with the TUTTUNO infeed.
- Synchronized electronic control: Auto-stop on full stacks or operator error.
- Multi-model compatibility: TUTTUNO 4, 9, ICE, ICE Plus.
- AISI 304 construction: Hygienic, durable, EU food-safety compliant.
3. INVESTMENT BENEFITS
- +30–40% throughput by removing mould waiting time.
- Lower staffing: One operator can run TUTTUNO + MOULD LOADER + VIBRA.
- Stable line performance: Less misalignment and ingredient loss.
- Ideal for mid-to-large plants targeting full OneShot automation.
4. TECHNICAL SPECIFICATIONS
Specification | Value |
Electrical supply | 220 V / 1 ph / 50 Hz |
Power Required | 0.5 kW – 16 A – 3 poles |
Dimensions (L × W × H) | 1 400 × 900 × 1 250 mm |
Machine weight | ≈ 100 kg |
Feed speed | 450–1,000 moulds/hour (per TUTTUNO model) |
Construction | AISI 304 stainless steel |
Origin | Italy (Italy) |
