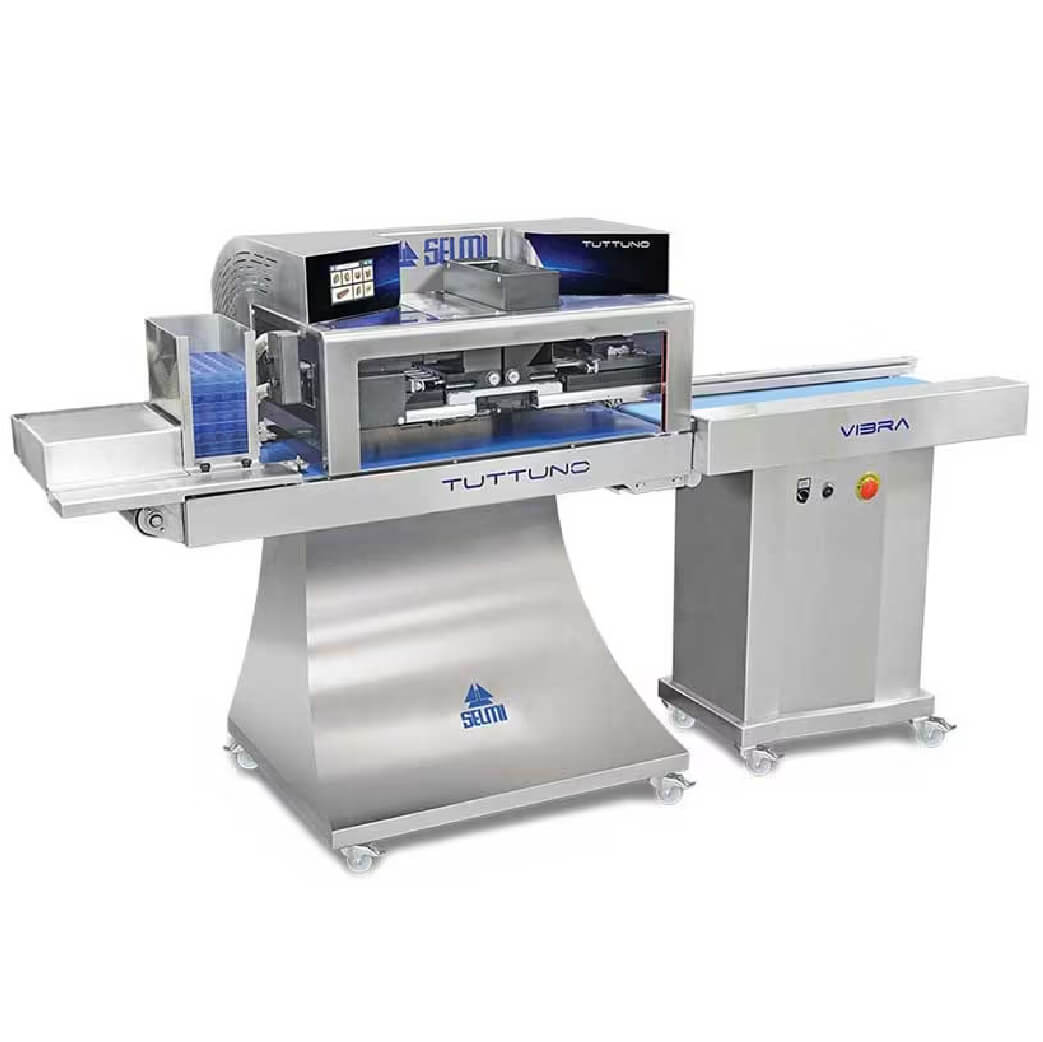

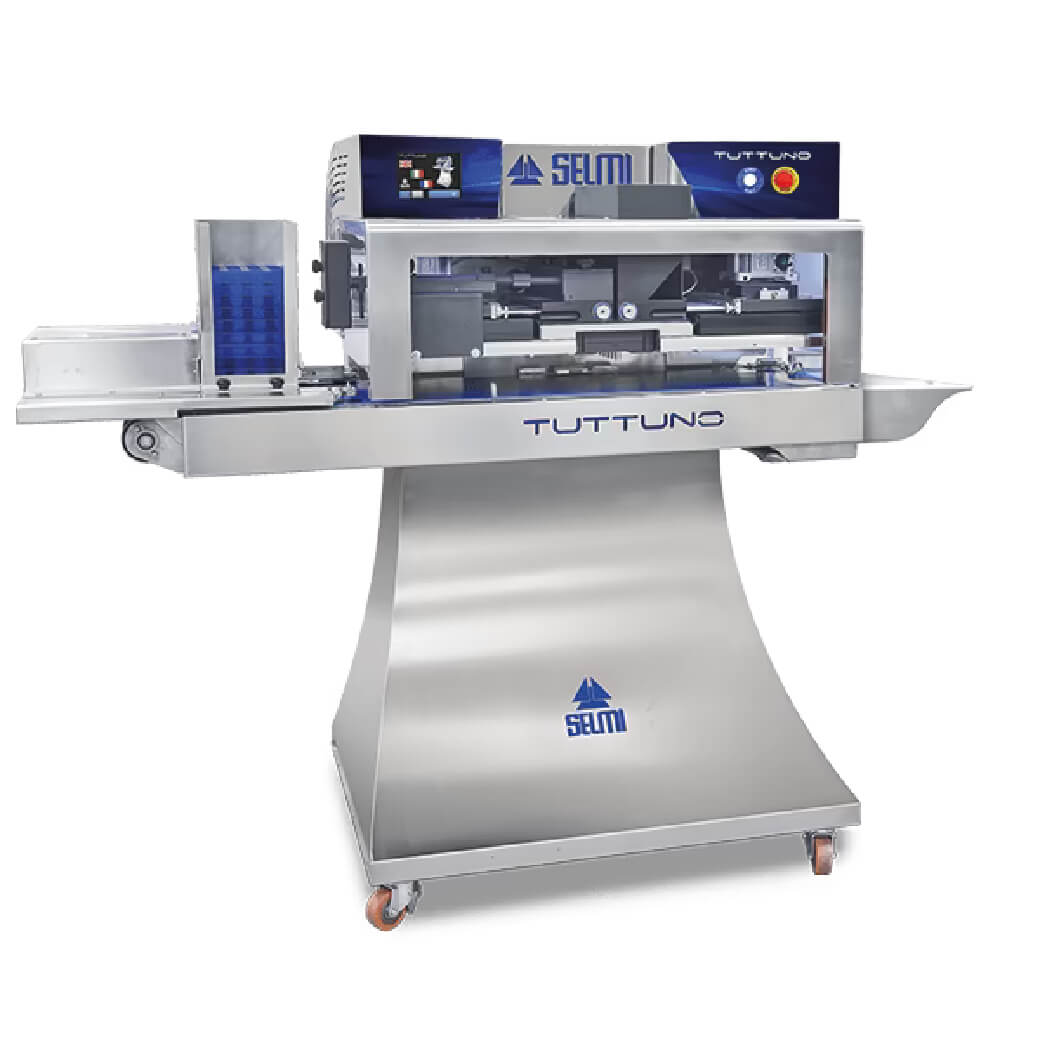

SELMI ONE SHOT TUTTUNO 9 - chocolate depositing machine
Voltage
400 V/3 Phase/50 Hz
Power
4-5 Kw
Hourly production rate
900-1000 mould
Dimensions
(LxWxH)
2200x1200x1700 mm
DETAILED PRODUCT INFORMATION
1. OVERVIEW
Brand: Selmi – Italy
Application Segment: Industrial chocolate plants, pralines, filled bars, premium confectionery..
Equipment Introduction:

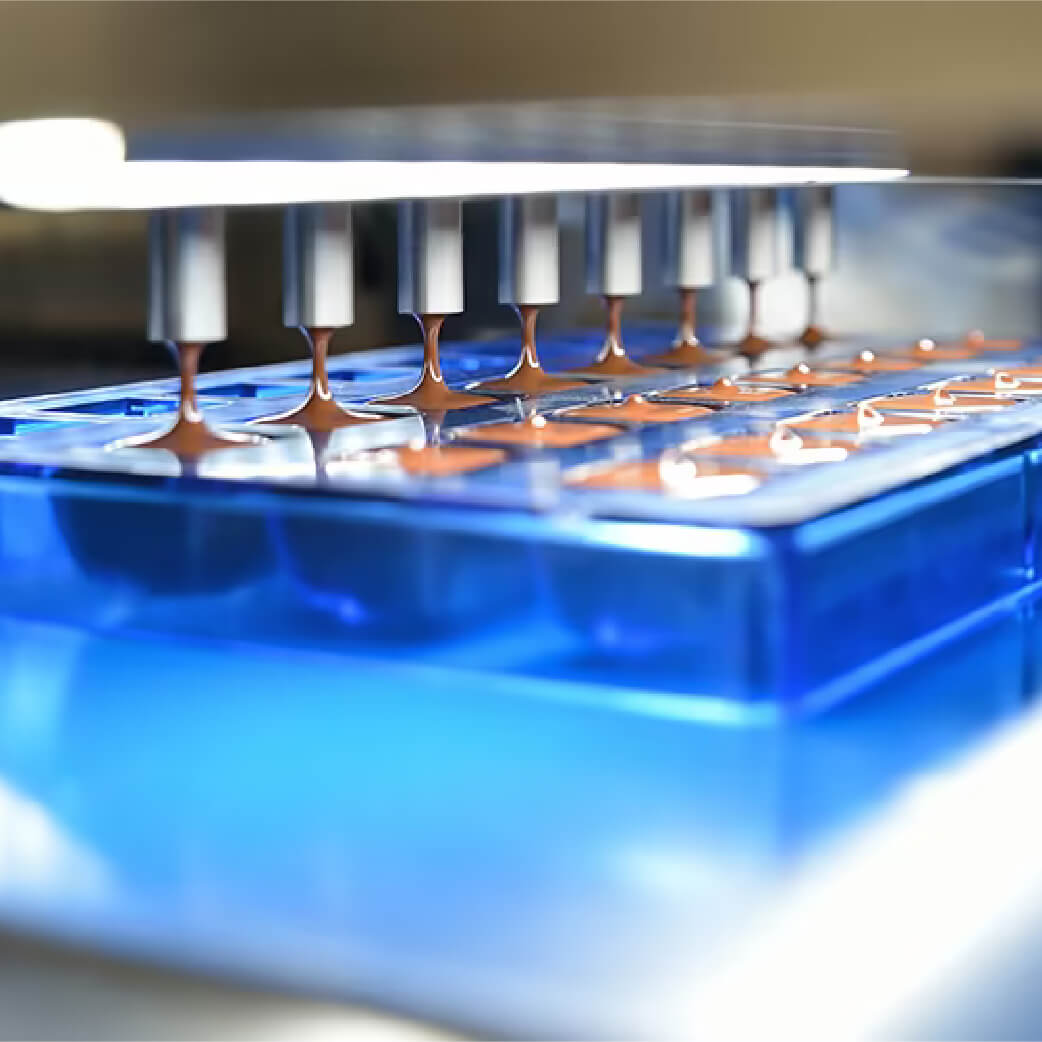

- TUTTUNO 9 expands the OneShot concept with 9 independent depositing heads, dosing shell and filling in a single cycle.
- With servo architecture and precise control, it delivers high throughput and consistency, fully integrating with Selmi automation (Spider, Vertical Tunnel, Demoulder).
2. KEY FEATURES
- Multi-head OneShot: 9 parallel streams, roughly 2× the output of TUTTUNO 4.
- Multilingual touchscreen: Per-product recipe setup and storage.
- High precision in weight & temperature: Servo control and independent temperature sensors per piston.
- Dual tempering integration: Works with two Selmi Top EX for continuous chocolate stability.
- AISI 304 frame, CE-compliant, hygienic and robust.
3. INVESTMENT BENEFITS
- Doubles capacity vs. TUTTUNO 4—ideal for industrial lines.
- Shorter cycle times, lower labor and waste.
- Straightforward scaling with twin Vertical Tunnels for parallel cooling.
- 100% weight/surface uniformity.
- Flexible portfolio: From pralines and filled candies to premium bars..
4. TECHNICAL SPECIFICATIONS
Specification | Value |
Electrical supply | 400 V / 3 ph / 50 Hz |
Power Required | 4 – 5 kW – 16 A – 5 poles |
Dimensions (L × W × H) | ≈ 2 200 × 1 200 × 1 700 mm |
Depositing heads | 9 |
Throughput | 900–1,000 moulds/hour |
Mould format | Polycarbonate 275 × 175 mm |
Machine weight | ~ 500 kg |
Origin | Italy (Italy) |
